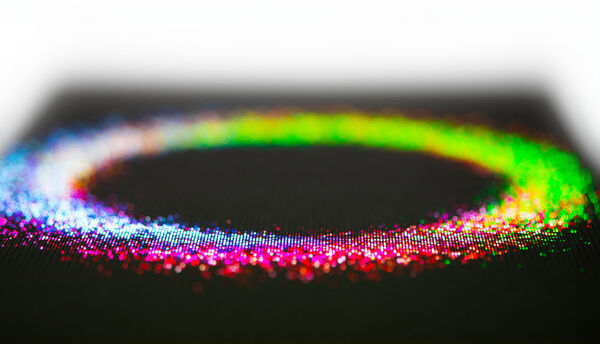

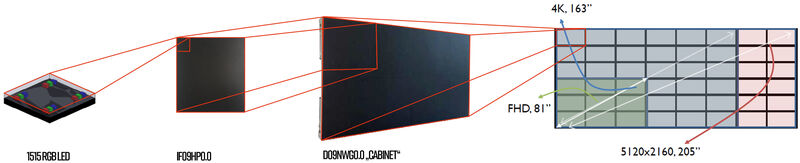

The technological development of Light Emitting Diodes (LEDs) has revolutionized the display market. Yenrich Technology Corporation (Yenrich) presents its latest product, a full-color LED display module with a pixel pitch of less than 1mm, which sets new standards in display technology. The modular design of this display offers versatile application possibilities, from small handheld devices to gigantic video walls with 4K resolution and more.

Outstanding benefits of LED displays

• Brightness and contrast: Excellent visibility, color accuracy and increased image quality even in bright daylight.
• Durability: Robust and long-lasting LEDs that can be used in various environments.
• Flexibility: Customizable in size and shape for various applications.
• Reduced space requirement: A low overall height enables installation in narrow applications.
• Energy efficiency: Low power consumption as LEDs are self-luminous and do not require backlighting.
• Repairability: Modular design enables defective segments or individual LEDs to be replaced.
• Environmentally friendly: No harmful materials such as mercury or boron.

Technological differentiation Mini LED vs. Micro LED

In Mini LEDs, the epi/chip sits on a carrier substrate, whereas the Micro LED does not require a carrier and is therefore significantly smaller. The achievable pixel pitch for Mini LED displays is in the range of approx. 2mm to 0.5mm. Due to their size, the pitch of Micro LEDs is lower and therefore the resolution of the display is higher.
